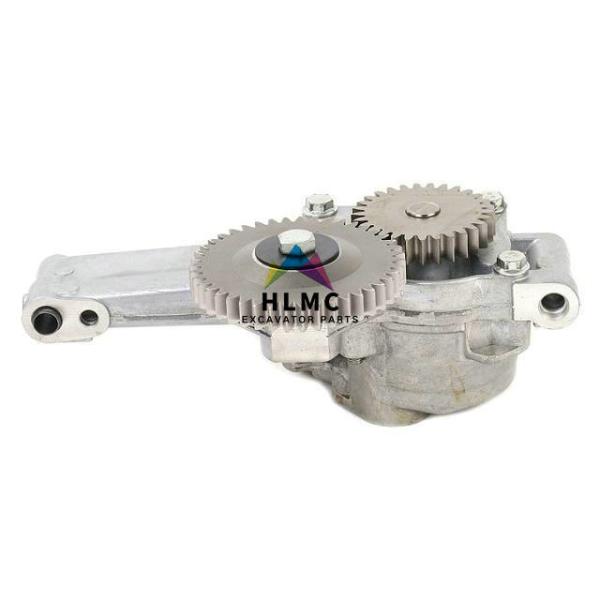

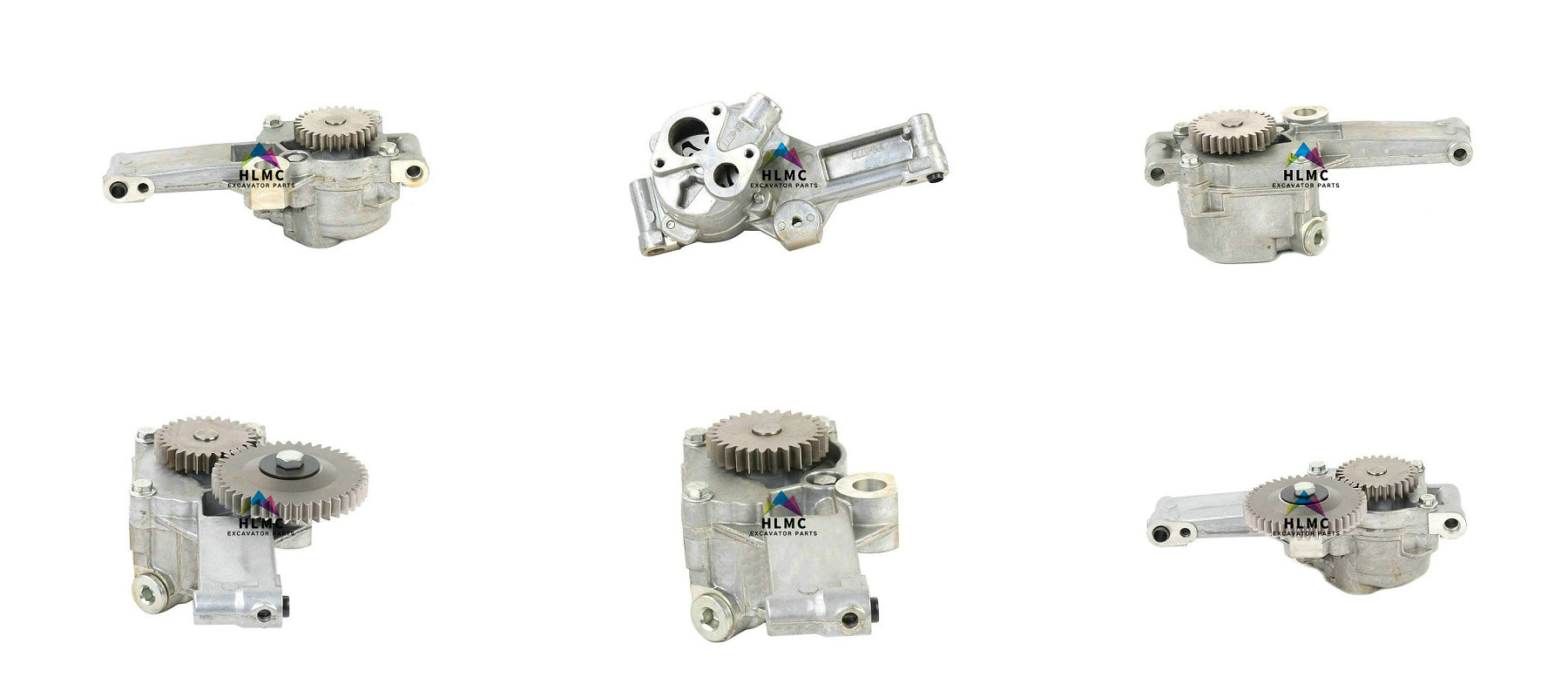

119-2924 1192924 0R2733 Diesel Engine 3116 3126 Oil Pump Excavator
320 320B 322 325 325B
Product Description
| Appliion | - ARTICULATED TRUCK D250D
- ASPHALT PAVER AP-1000 AP-1000B AP-1050 AP-1055B BG-2455C BG-245C
- CHALLENGER 45 55
- EXCAVATOR 320 L 320B 322 322 FM L 322 LN 322B 322B L 322B LN 325
325 L 325B 325B L E240C
- INDUSTRIAL ENGINE 3116
- INTEGRATED TOOLCARRIER IT28F IT28G IT38F IT38G IT62G
- MARINE ENGINE 3116 3126
- MOTOR GRADER 120H 120H ES 120H NA 135H 135H NA
- PIPELAYER 561M
- TRACK LOADER 953C 963B 963C
- TRACK-TYPE TRACTOR 30/30 D5M D6M DEUCE
- TRUCK ENGINE 3116
- VIBRATORY COMPACTOR CB-634 CB-634C CP-563 CS-531 CS-531C CS-533
CS-533C CS-563C CS-573C CS-583 CS-583C
- WHEEL LOADER 928F 928G 938F 938G 950F 950F II 950G 960F 962G
- WHEEL TRACTOR 613C II
- WHEELED EXCAVATOR M318 M320 M325B
|
| OEM NO. | CA1192924 119-2924 1192924 0R2733 |
| MOQ: | 1PCS |
| Warranty | Within 3 months |
| Certifiion | ISO9001 / TS16949 |
| After-sales service | Online support |
| Place of Origin | Guangzhou, China(Mainland) |
| Applicable industry | Machinery Repair Shops, Construction Works |
| Status | 100%NEW |
| Service system | Field Installation, Commissioning And Training, Field Maintenance
And Repair Service, Online Support, Engineers Available To Service
Machinery Overseas, Free Spare Parts |
The role of the oil pump
Oil pump is a key component essential to the normal operation of
the engine. The role of the oil pump is to press the oil in the oil
sump to the oil filter and the lubriing oil channel after
pressurization, so as to lubrie the main moving parts of the engine
and make the oil get filtered.
When the engine is working, the oil pump keeps working, so as to
ensure that the oil is circulating in the lubriing oil path. Under
various working conditions of the engine, the oil pump should
ensure the supply of sufficient lubriing oil. As the speed of the
oil pump is proportional to the engine speed, the oil pump has the
worst oil supply capacity at low speed. So we design the oil pump
with sufficient oil supply capacity at low speed in mind.
The working principle of oil pump
When the engine is operating, the timing gears of the crankshaft
rotate the oil pump. The rotor teeth are designed in such a way
that when the rotor is turned to any position, the gear lines
always make point contact with each other. In this way, a closed
cavity is formed between the inner and outer rotor, and when it is
turned from the oil inlet, the volume increases and a vacuum is
generated, and the lubriing oil is sucked in through the oil inlet;
when the cavity where the lubriing oil is sucked in is connected to
the oil outlet, the volume in the cavity decreases and the oil
pressure rises, and the lubriing oil is pressed out from the
outlet. When the engine keeps running, the oil pump also keeps
running, forcing the lubriing oil to circulate according to the
prescribed path; when the oil pump pumping pressure is too big or
too small, the pressure limiting valve opens or closes.
119-2924 Part Number alog
More related products you are looking for
2W2605
2W2605 PUMP AS-FUEL PRIMING
120H, 120H ES, 120H NA, 135H, 135H NA, 3114, 3116, 320 L, 320B,
322B L, 322B LN, 325, 325 L, 325B, 325B L, 3508B, 3512, 3512B,
3516B, 5130, 5130B, 5230, 561M, 589, 631E, 633E II, 637E, 651E,
657E, 769...
1832823
1832823 PUMP AS-FUEL PRIMING
120H, 120H NA, 135H, 135H NA, 3114, 3116, 320B, 320D GC, 320D L,
322B L, 322B LN, 322C, 322C FM, 323D L, 324D, 324D L, 324D LN, 325B
L, 325C, 325D, 325D L, 326D L, 328D LCR, 329D, 329D L, 329D LN,
330...
1094327
1094327 PUMP GP-HYDRAULIC
30/30, 3116, 3126, DEUCE
7T8891
7T8891 PUMP AS-WASHER
120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 12G, 12H, 12H ES, 12H
NA, 12K, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K,
140K 2, 143H, 14G, 14H, 14H NA, 160H, 160H ES, 160H NA, 160K, 163H,
...
1593140
1593140 PUMP AS-WATER
3116, 3126
4P3682
4P3682 PUMP AS-WATER
3114, 3116, 3126
1593139
1593139 PUMP AS-WATER
3116, 3126, 3126B, 3126E, 322C, 322C FM, 325C, 325C FM, 328D LCR,
329D L, 570B, 580B, 962G II, C7, M325C MH
1593145
1593145 PUMP AS-WATER
3116, 3126, 3126B, 3126E, 950F, 950F II, 960F, C7
3522142
3522142 PUMP AS-WATER
3116, 3126, 3126B, 3126E, C7
7T8890
7T8890 PUMP AS WASHER
120M, 120M 2, 12M, 140M, 140M 2, 14M, 160M, 160M 2, 16M, 215B,
215C, 215D, 219D, 225, 225D, 227, 229, 229D, 231D, 235B, 235C,
235D, 245, 245B, 245D, 311B, 311D LRR, 312, 312B L, 312C L, 312D,
312D L, ...
1623905
1623905 PUMP AS-FUEL PRIMING
120H, 120H ES, 120H NA, 135H, 135H NA, 963B, 973, 973C
3E5470
3E5470 PUMP AS-WASHER
120H ES, 120H NA, 12H ES, 12H NA, 130G, 135H NA, 140H, 140H ES,
140H NA, 143H, 14H NA, 160H ES, 160H NA, 163H NA, 16H NA, D7G
6R0080 PUMP GP-FUEL
AP-1000, AP-1050, AP-800
5E8669 PUMP GP-FUEL
AP-1000, AP-1050, AP-800
5E8701 PUMP GP-GEAR
AP-1000, AP-1050, AP-800
7X9279 PUMP GP-HYDRAULIC
CB-434
7X9387 PUMP GP-STEERING
CB-434
0813628 PUMP GP-CAB TILT
CB-434, CB-434B, CB-434C, CB-534, CB-534B, CB-534C, CB-535B,
CB-544, CB-545
5E5607 PUMP GP
CB-534
0853335 PUMP GP
CB-534
7X9826 PUMP GP
CB-534
0813340 PUMP GP
CB-534
7R6354 PUMP GP
CB-534
2W1736 PUMP GP
3304, 3304B, CB-534
FAQ
Q1:If I only know the excavator model, but can not offer parts No.,
what should I do ?
A1: If possible, you can send us pictures of old products, name
plate or the size for reference.
Q2: What is the warranty of the parts after I purchased?
A2: The warranty is 6/12 Months based on the item details. For
natural broken, 3 months. Guarantee genuine parts.
Q3: What's payment you can accept?
A3: We can receive payment through T/T, L/C ,D/A ,D/P ,MoneyGram
,Western Union, Paypal
Q4: When will I get the items after place order?
A4:1) In stock: 1-7days.Always in 24 hours
2) Out of stock: It's according to your quantity. We will let you
know when we quote.
Q5: How can I do if there is something wrong with the items?
A5: Our products have been professionally tested and the quality is
very stable ,if you really found something wrong ,pls contact us ,
We have a professional after-sales team to help you solve the
problem .
Q6: What's package? Can you give me the package according my
requirement?
A6:Yes, Standard packing , Neutral packing with wooden box or
carton , as your customize.
Q7: What is your main products ?
A7: We are specialized in the excavator spare parts, such as travel
motor gearbox/assy/parts, swing gearbox/assy/motor/parts,hydraulic
pump assy/parts and gear parts. seals kit , liner kits ,If you need
other excavator parts, we also can supply as your requirements.
